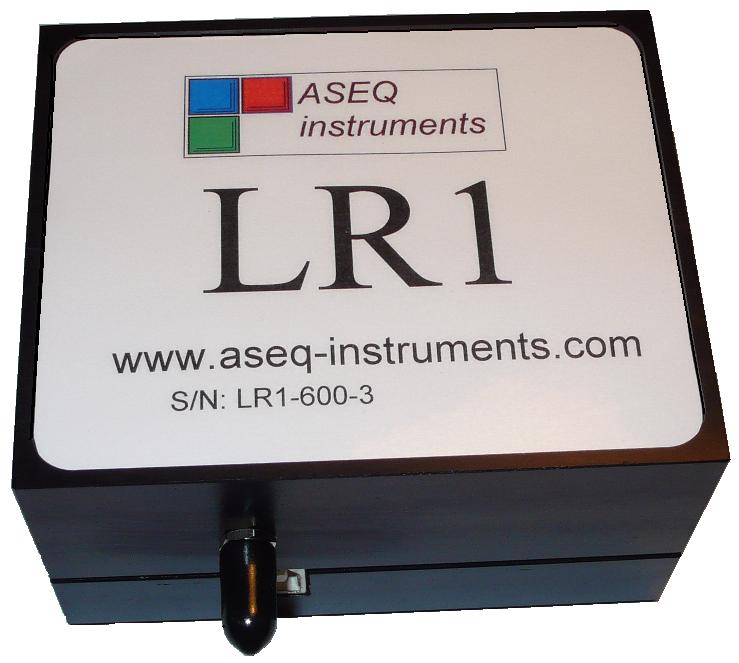

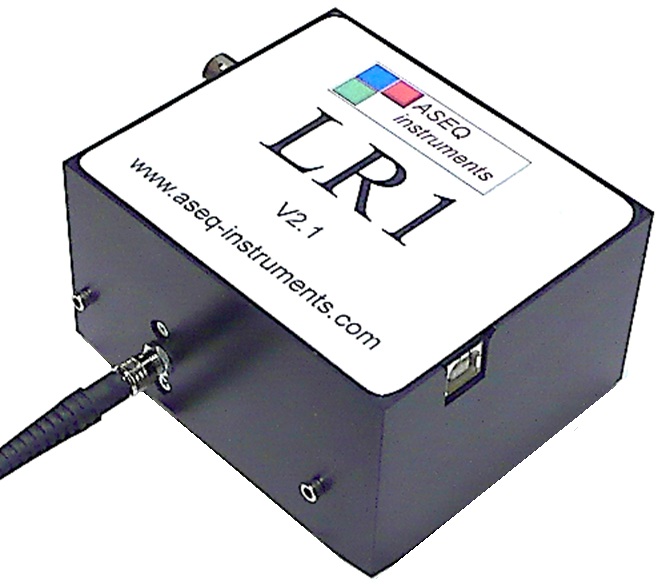

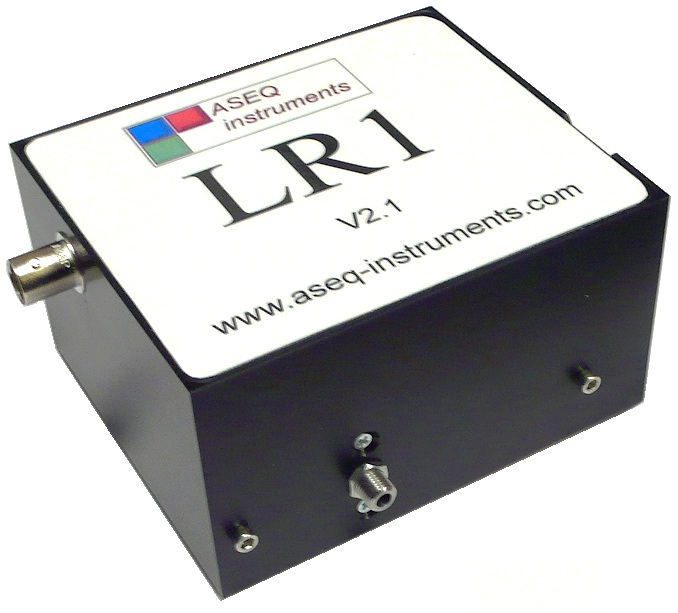

LR1 – Broad spectral range spectrometer. USB interface
Spectral range and spectral resolution can be customized
examples on LabView and VC++ are included in standard configuration
PDF specification

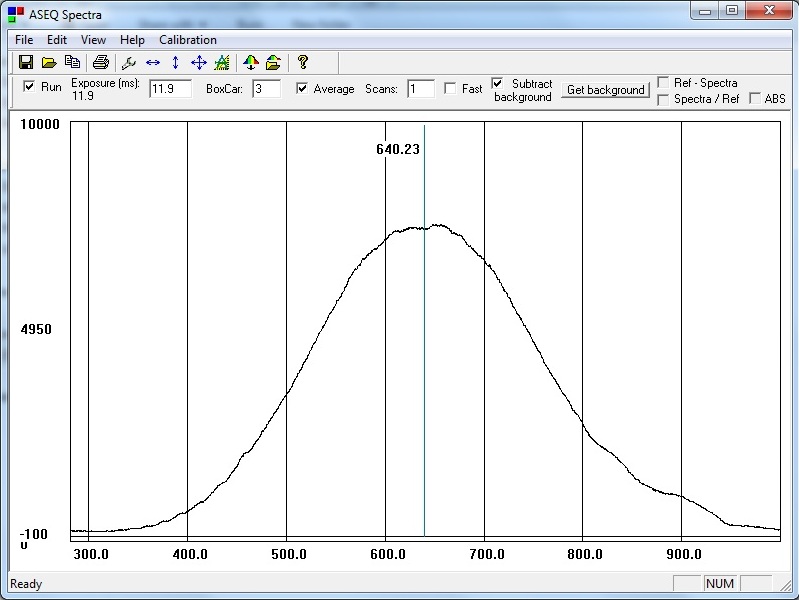

Halogen and mercury lamp spectra
CRI, XYZ coordinate on XYZ color space, Absolute Irradiation Measurements (W/cm^2/nm)

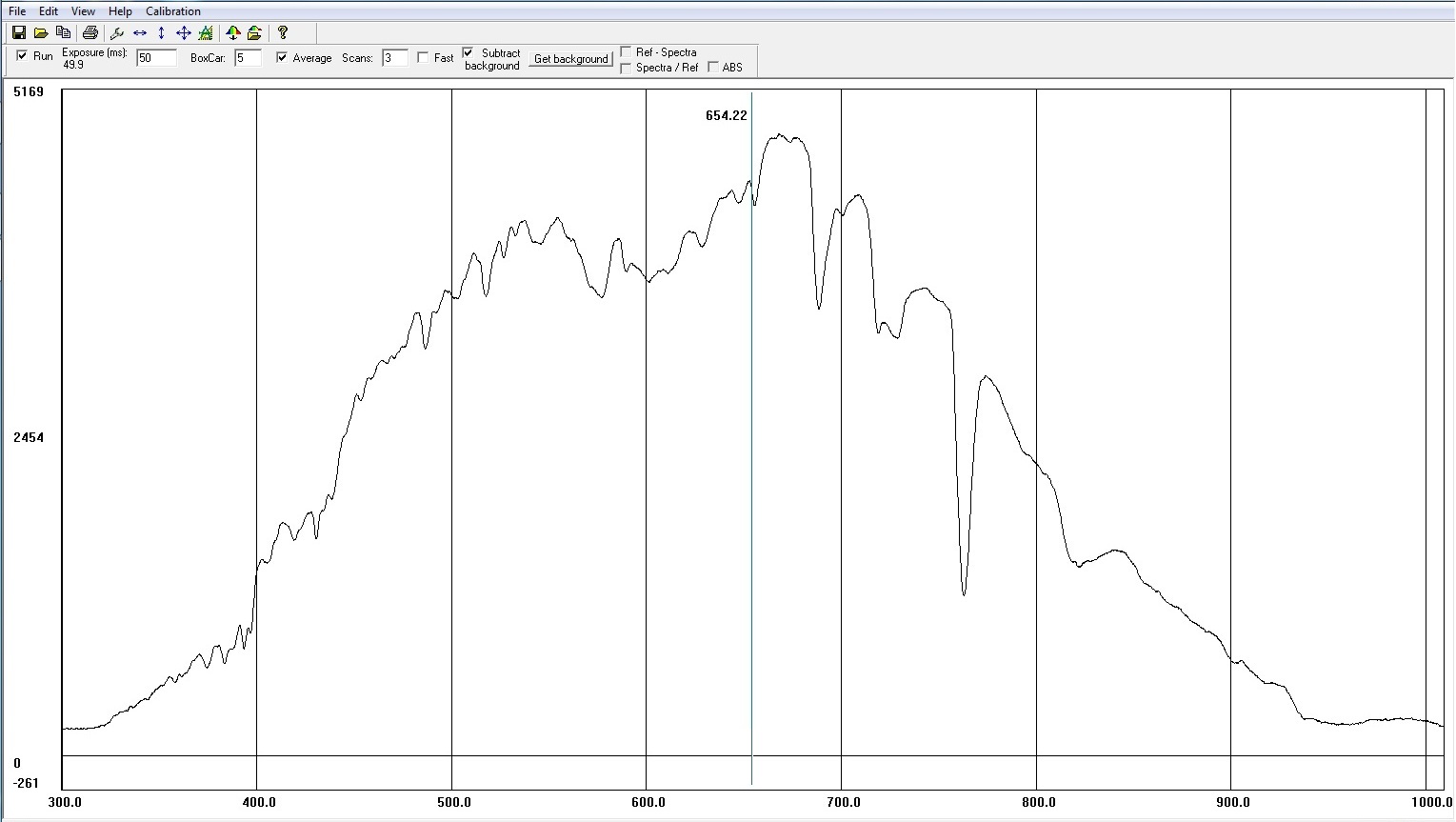

solar radiation spectra
Halogen lamp radiation spectra
xenon lamp spectra
Stadard configuration
| price in standard configuration: |
$749
(external triggering option - $35) (CRI, XYZ coordinate calculation on XYZ color space, Absolute Irradiation Measurements (W/cm^2/nm) - $47) |
| Weight: | 430 grams |
| Dimensions: | 102 mm x 84 mm x 59 mm |
| Detector: |
Toshiba TCD1304DG linear array (no interference pattern)
We can replace CCD sensors on our previously made spectrometers |
| Detector range: | 200 – 1100 nm |
| Pixels: | 3648 |
| Pixel size: | 8 um x 200 um |
| Pixel well depth: | 100,000 electrons |
| Signal-to-noise ratio: | 400:1 (10000:1 with averaging) |
| A/D resolution: | 16 bit |
| Fiber optic connector: | SMA 905 to 0.22 numerical aperture single-strand optical fiber |
| diffraction order sorting filter: | included |
|
Wavelength and
Optical resolution: |
Configuration A: Spectral range: 300 – 1000 nm spectral resolution: < 1 nm (with 50 um slit) Configuration B: Spectral range: 200 – 1200 nm spectral resolution: < 2 nm (with 50 um slit) Configuration C: Spectral range: 560 – 960 nm spectral resolution: < 0.4 nm (with 50 um slit) Configuration D: Spectral range: 300 – 700 nm spectral resolution: < 0.4 nm (with 50 um slit) Configuration E: Spectral range: 200 – 730 nm spectral resolution: < 0.5 nm (with 50 um slit) (Spectral range and spectral resolution can be customized) |
|
Exposure time: |
10 us – 60 s |
| CCD reading time: | 14 ms |
| Power consumption: | 100mA @ 5V from USB interface |
| Onboard memory capacity: | 64 spectra |
| Data transfer speed: | 200 ms / 100 ms (2 points binding) |
| Trigger: | 3 modes (Internal, External TTL, Optical) (in LR1 some trigger modes are optional) |
| Computer interface: |
USB 2.0, HID 2.0
Several spectrometers can be connected to the same computer |
| Operational system: | Windows 11 / Windows 10 / Windows 8 / Windows 7 / Vista / XP ; 32/64b |
| Software: | application software, driver, LabView and VC++ examples |
| Hardware: | USB cable, 1 meter optical fiber with SMA connectors |
